ALBAAxial fan
FEATURES
- New cover design.
- Axial fans to extract air directly outside or through short ducting.
- Operating indicator light on all models.
- Click assembly of the grille and of the cover.
- Long life ball bearing motor.
- Backdraught shutter.
- Two fixing screws for an easy installation.
- For ducts Ø 100-120-150 mm.
- Versions: Base, Timer, HT.
- High performances, low sound level and low power consumption.
- 45° C working temperature.
- PX4 protected (EN 60529).
- In accordance with Standard EN 60335-2-80.
POSITIONING
- Wall mounting
- Ceiling mounting

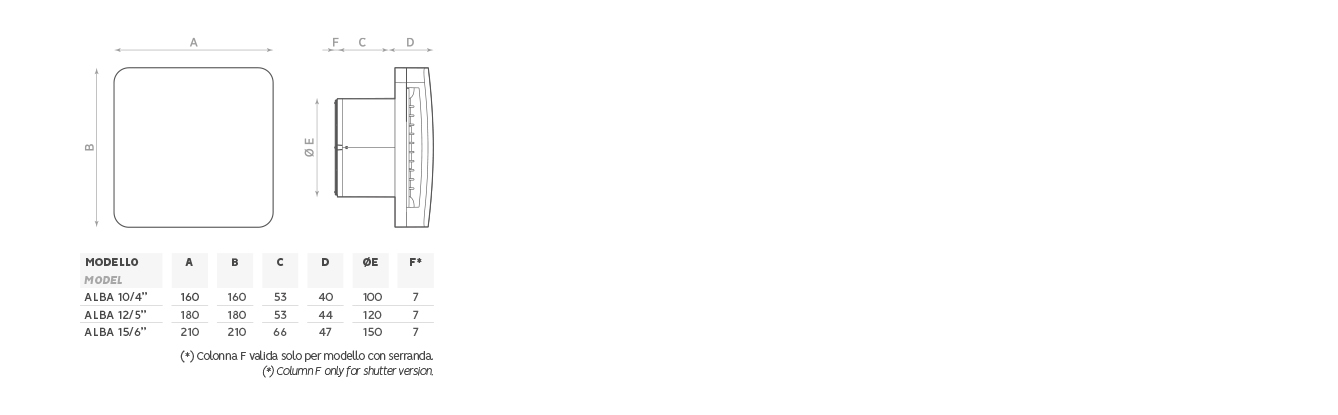

DIMENSIONS
Product versions
Slide the table to the right
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) with shutter | Flow rate (m³/h) without shutter | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Noise dB(A)3m | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) with shutter | Flow rate (m³/h) without shutter | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Noise dB(A)3m | Weight (Kg) |
| ALBA 10/4 | 0053110 | 100 | 220 - 240 | 50 | 80 | 95 | 2,8 | 28 | 10 | 33,1 | 0,5 |
| ALBA 10/4 | 0053111 | 100 | 220 - 240 | 50 | 80 | 95 | 2,8 | 28 | 10 | 33,1 | 0,5 |
| ALBA 10/4 | 0053112 | 100 | 220 - 240 | 50 | 80 | 95 | 2,8 | 28 | 10 | 33,1 | 0,5 |
| ALBA 12/5 | 0053210 | 120 | 220 - 240 | 50 | 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| ALBA 12/5 T | 0053211 | 120 | 220 - 240 | 50 | 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| ALBA 12/5 HT | 0053212 | 120 | 220 - 240 | 50 | 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| ALBA 15/6 | 0053310 | 150 | 220 - 240 | 50 | 240 | 260 | 5,9 | 58 | 29 | 35,7 | 0,9 |
| ALBA 15/6 T | 0053311 | 150 | 220 - 240 | 50 | 240 | 260 | 5,9 | 58 | 29 | 35,7 | 0,9 |
| ALBA 15/6 HT | 0053312 | 150 | 220 - 240 | 50 | 240 | 260 | 5,9 | 58 | 29 | 35,7 | 0,9 |
