TURBOCAMINORoof fan for 200°C
FEATURES
- Centrifugal chimney roof fans for hot fumes (max 200°C).
- To extract hot dusty fumes/air smoke at temperature up to 200°C.
- Suitable for fireplaces, ovens waste or industrial hoods.
- For all chimneys with low natural draw.
- Ball bearing class F insulation motor IP55 protected.
- Aluminium protection cover.
- Self cleaning backward centrifugal zinc plated steel impeller statically and dynamically balanced.
- Safety protection outside grille.

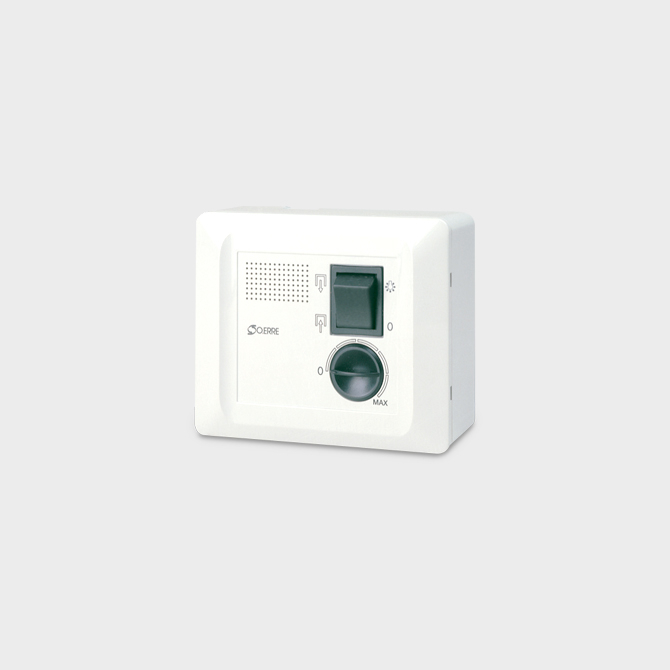

- Provided with electronic speed controller RGE, for industrial use RGM2 available as accessory.
- The opening system allows easy access to the chimney for cleaning.
- In accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857; UNI EN ISO 12499; CEI EN 60204-1.
POSITIONING
- Roof mounting
ENVIROMENT APPLICATION
Suitable for all chimneys with insufficient up draught.
DIMENSIONS
Flow charts
Product versions
Slide the table to the right
| Model | Code | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Revolutions per minute (RPM) | Weight (Kg) | Motor | N° poles | Nom. Current (A) 230 V | Noisiness(A)2m | IP motor protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Revolutions per minute (RPM) | Weight (Kg) | Motor | N° poles | Nom. Current (A) 230 V | Noisiness(A)2m | IP motor protection |
| TURBOCAMINO | 0055400 | 230 | 50 - 60 | 1200 | 19,5 | 191 | 110 | 1400 | 13,2 | Single phase | 4 | 0,6 | 52,5 | IP55 |
